AusherMed 3600

Built for SDA compliance, vaccine cold chain protection, and facility-level backup power. Expandable to 28.8kWh.

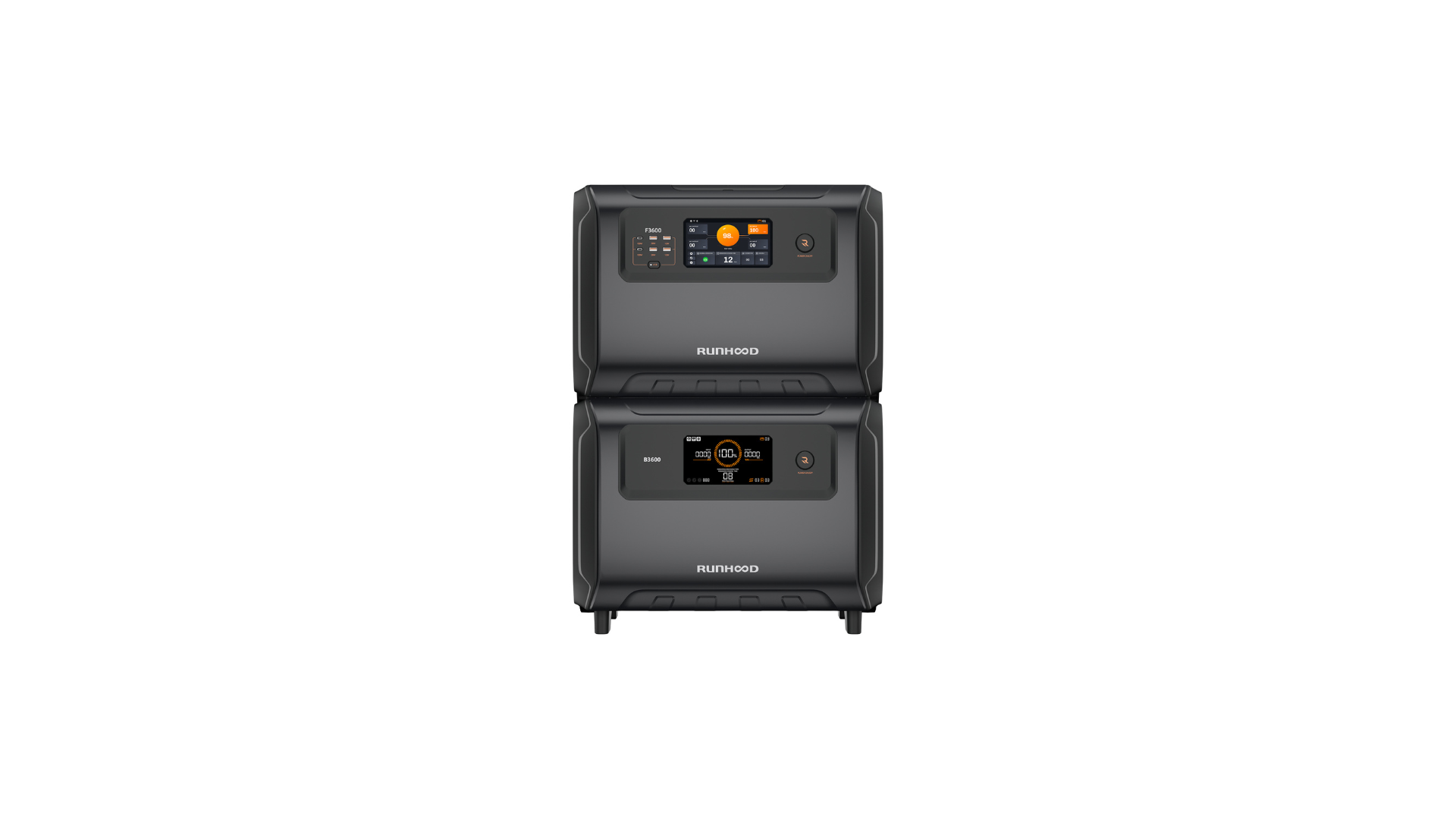

The AusherMed 3600 is a high-capacity portable UPS power station designed for facility-level healthcare backup. With 3,600Wh of LiFePO4 battery capacity expandable to 28.8kWh, it delivers the extended runtime that SDA homes, pharmacies, clinics, and aged care facilities need to stay operational during prolonged power outages.

SDA Backup Power The AusherMed 3600 meets SDA backup power requirements when connected to a sub-switchboard by a licensed electrician. It provides backup for no less than 2 double GPOs in participant bedrooms and any provided automated doors used for entry or egress, as required under Clause 22.1 of the SDA Design Standard for High Physical Support dwellings — with under 10ms switchover to ensure uninterrupted operation. Its expandable capacity provides well beyond the minimum 2-hour SDA requirement.

Vaccine and Cold Chain Protection For pharmacies, clinics, and pathology labs, the AusherMed 3600 protects temperature-sensitive vaccines, biologics, and medications with seamless UPS backup. A typical medical refrigerator will run for 20+ hours on a single charge, with expansion batteries extending runtime to days if needed.

Facility-Level Backup With 3,600W continuous output (7,200W peak), six AC outlets, and an 8-inch LCD touchscreen for monitoring, the AusherMed 3600 is designed for environments where multiple systems need simultaneous backup. The home backup port enables direct sub-switchboard connection for whole-circuit protection.

High-Capacity Power:
3,600 Wh usable energy, expandable with additional 3600B battery modules up to 28.8 kWh

Intelligent Pass-Through Operation:
Can remain connected continuously, featuring battery-friendly cycling and advanced protection against over-current, over-voltage, and thermal stress

Fire & Battery Safety Certified:
Compliant with IEC 62619, UL 9540A, IEC 62040-1, CE, RCM, and RoHS standards for safe use near people and medical equipment

Versatile Output Options:
Delivers up to 3,600 W continuous (7,200 W peak) via multiple AC, USB-A, USB-C, DC, and EV outputs for different care needs

Quiet & Low-Maintenance:
No fumes, minimal noise—suitable for bedrooms, clinics, and aged-care environments

Long Service Life:
Over 6,000 cycles to 80 % capacity, backed by a 5-year warranty

Battery & Compliance at a Glance

Battery Chemistry: LiFePO₄ (Lithium Iron Phosphate)
Usable Capacity: 3,600 Wh (Expandable to 28.8 kWh)
Operating Voltage: 38 – 53 V DC
Max Charging Current: 55 A
Max Discharging Current: 140 A
Battery Lifecycle: > 6,000 cycles (~80 % capacity)
Operating Temperature: –28 °C to 50 °C (discharge) | –2 °C to 50 °C (charge)
Weight: ~48 kg
Dimensions (L × W × H): 588 mm × 400 mm × 424 mm
Compliance Standards: IEC 62619, IEC 62040-1, UL 9540A, CE, RCM, RoHS
Warranty: 5 Years

Use Cases

SDA Homes — Emergency backup power for High Physical Support (HPS) dwellings, covering no less than 2 double GPOs in participant bedrooms and automated doors used for entry or egress, as required under Clause 22.1 of the SDA Design Standard. Expandable capacity provides well beyond the minimum 2-hour requirement.

Vaccine and Cold Chain — Uninterrupted power for vaccine fridges, medication storage, and biological sample refrigeration in pharmacies, clinics, GP practices, and pathology labs.

Aged Care Facilities — High-capacity backup for common areas, medication rooms, kitchen equipment, nurse stations, and essential building systems during outages.

Clinics and Medical Practices — Facility-wide backup for reception systems, server rooms, medical refrigeration, sterilisation equipment, and essential clinic operations.

Emergency and Field Operations — Portable high-capacity power for temporary medical shelters, emergency response setups, and disaster relief operations.
