AusherMed 2400B

The AusherMed 2400B is a modular expansion battery designed to extend the runtime of your AusherMed 2400 system. For clients with elevated power needs — whether due to multiple assistive devices, higher-draw equipment like oxygen concentrators, or the need for multi-day backup — the 2400B provides a safe, reliable way to scale capacity without replacing your existing system.

Important: The 2400B requires an AusherMed 2400 base unit to operate. It cannot function as a standalone power station.

Each module adds 2,400Wh of LiFePO4 storage. Up to seven 2400B units can connect to a single AusherMed 2400, bringing total system capacity to 19.2kWh. Expansion is plug-and-play — no setup, configuration, or special tools required. The AusherMed 2400 automatically detects connected modules.

Runtime Examples — What Extra Capacity Means in Practice

Runtimes are estimates based on typical device wattage and ~85% inverter efficiency. Actual results vary by device model and settings.

Key Features

Purpose-Built for Home Healthcare: Seamlessly integrates with the AusherMed 2400 system, extending runtime while maintaining full system compliance with IEC 60601-1 and IEC 60601-1-2.

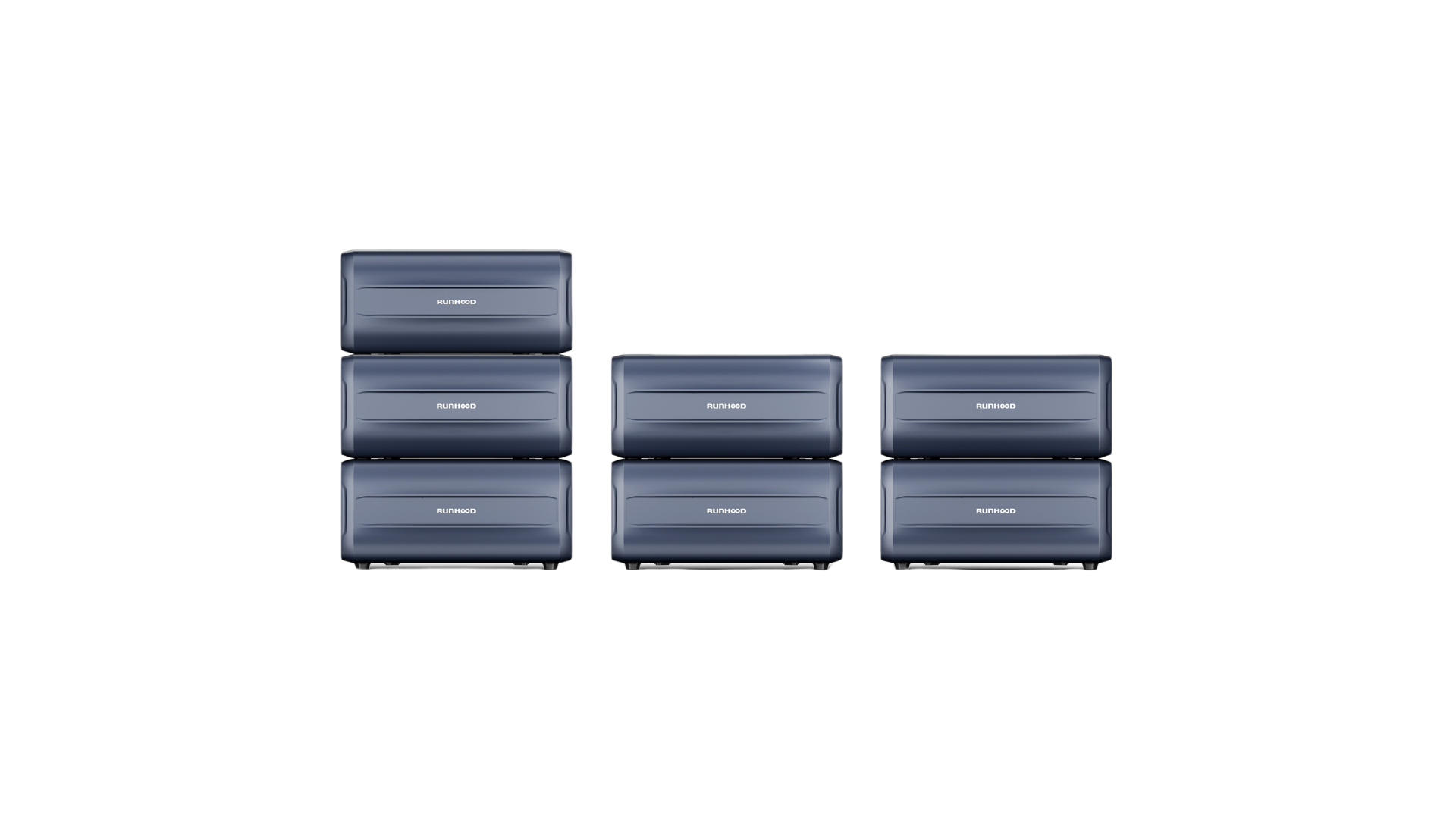

Modular Scalability: Each 2400B unit adds 2,400Wh of capacity. Connect up to 7 expansion units to tailor energy reserves to individual care needs — from single-device overnight backup to multi-device, multi-day protection.

Bedroom-Safe Operation: Silent, emission-free, and vibration-free. Designed for bedside placement and nighttime use.

Pass-Through Charging and Battery Cycling: Supports continuous equipment operation while intelligently managing battery health across all connected modules.

Zero Setup Required: Simply connect. Auto-detection eliminates the need for apps, pairing, networking, or professional installation.

Medical-Grade Safety: Compliant with IEC 60601-1, IEC 60601-1-2, IEC 62619, IEC 62040-1, CE, RCM, and RoHS.

Use Cases

Extended CPAP Backup: One 2400B module extends CPAP runtime from 1 night to nearly 3 nights. For clients in areas with frequent or prolonged outages, this means uninterrupted sleep therapy across an entire storm event.

Oxygen Concentrator Support: Oxygen concentrators draw significantly more power than other home devices. Adding 2400B modules is the most practical way to achieve meaningful runtime — one module nearly doubles backup from 7 hours to 14 hours.

Multi-Device Households: Running an air mattress and a CPAP simultaneously doubles the power draw. Expansion batteries ensure both devices are covered without compromising runtime.

Regional and Remote Clients: Power restoration in regional areas can take days. Scaling up to 19.2kWh provides the extended autonomy that remote clients need.

NDIS and Aged Care Planning: Capacity can be scaled progressively as client needs evolve — add modules when new devices are introduced or care requirements change.

Battery and Compliance at a Glance

• Battery Chemistry: LiFePO4 (Lithium Iron Phosphate)
• Usable Capacity (Per Unit): 2,400Wh
• Expandable Configuration: Up to 19.2kWh (8 units total including AusherMed 2400)
• Operating Voltage: 42–54.75V DC
• Max Charging Current: 50A
• Max Discharging Current: 100A
• Battery Lifecycle: Up to 8,000 cycles (~70% capacity)
• UPS Switchover Time: <10 milliseconds (via AusherMed 2400)
• Weight: ~22kg
• Dimensions (L × W × H): ~481mm × 289mm × 231mm
• Compliance Standards: IEC 60601-1, IEC 60601-1-2, IEC 62619, IEC 62040-1, CE, RCM, RoHS
• Warranty: 5 Years

Why It Matters

The AusherMed 2400B gives families, carers, and healthcare providers the ability to scale backup power without sacrificing safety, compliance, or ease of use. Care needs change — your power system should be able to change with them.
